DESCRIPTION

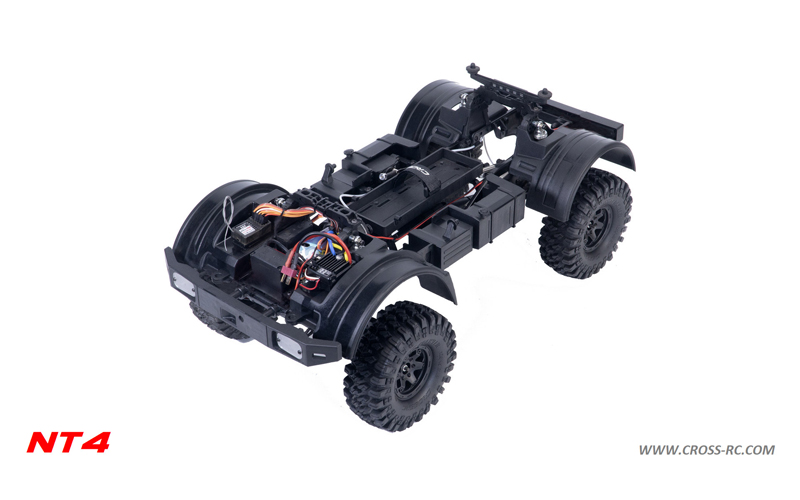

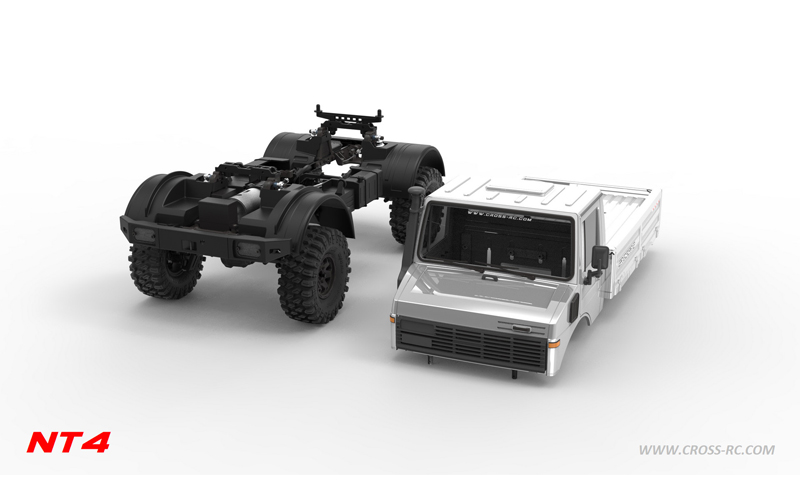

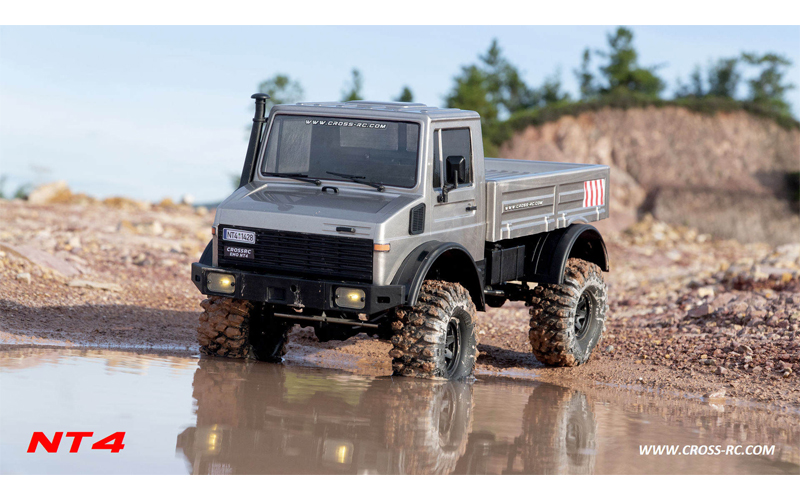

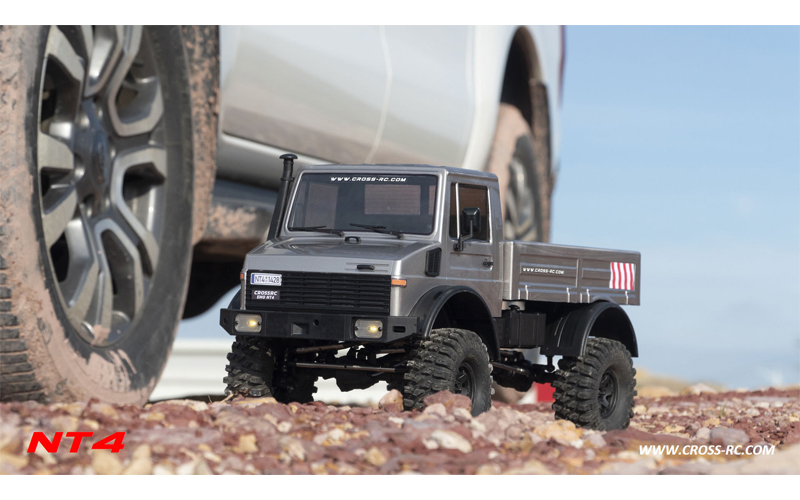

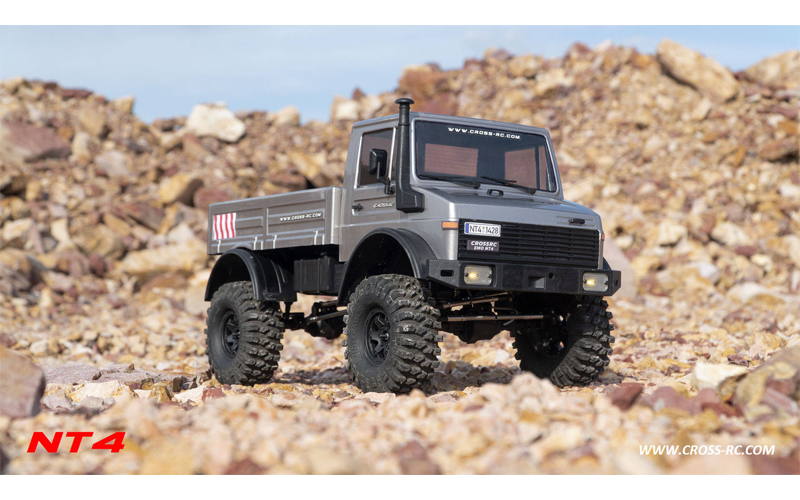

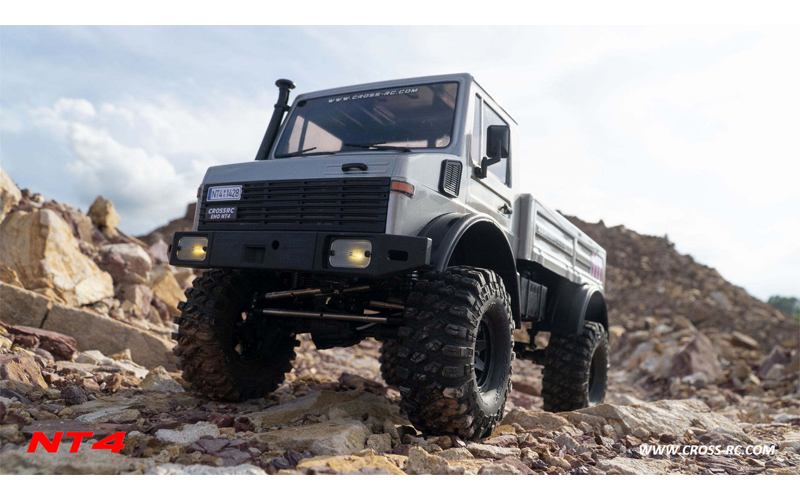

CROSS RC NEW EMO NT-4 4X4 chassis isn’t a simple upgrade based on the DEMON. It’s a new design complete with essential changes. The new design not only improves the issues on the Demon model, but also gets optimization of the structure design, material and technology and improves the reliability and durability of the parts.
The EMO NT-4 new chassis has leading superiority in the multi-function and climbing performance!

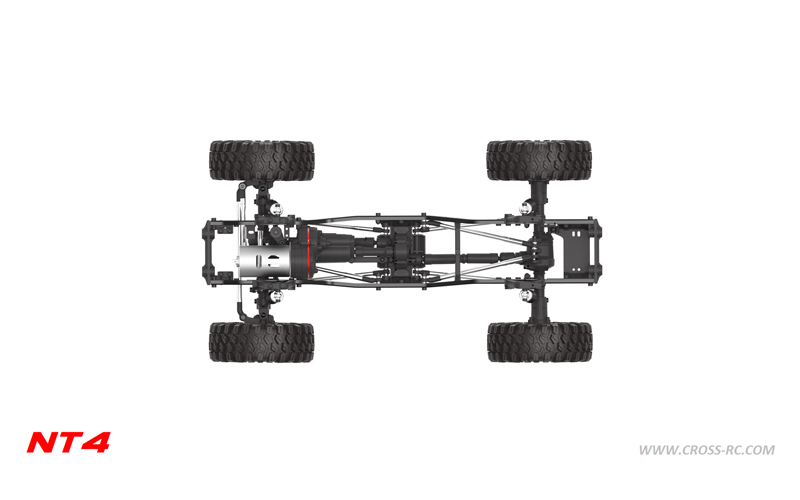

The suspension use multi link integral axle design.
The steel connecting rod, and the front axle is equipped with Panhard rod.
With 2 speed transmission, transfer case, differential lock and portal axle.

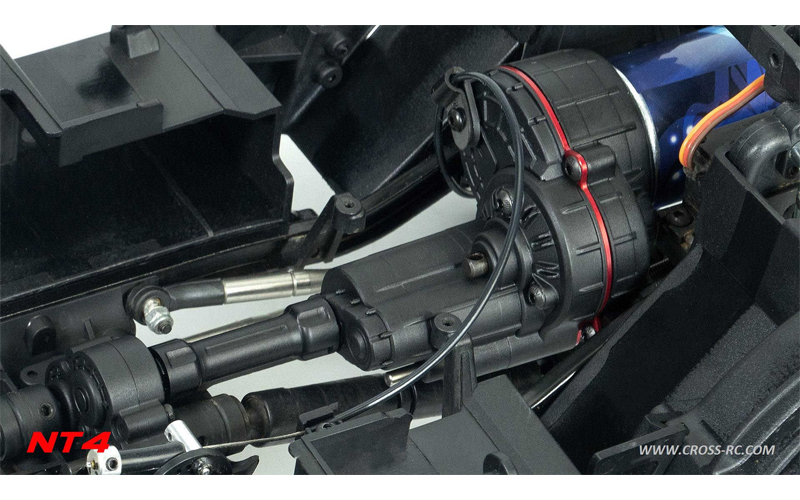

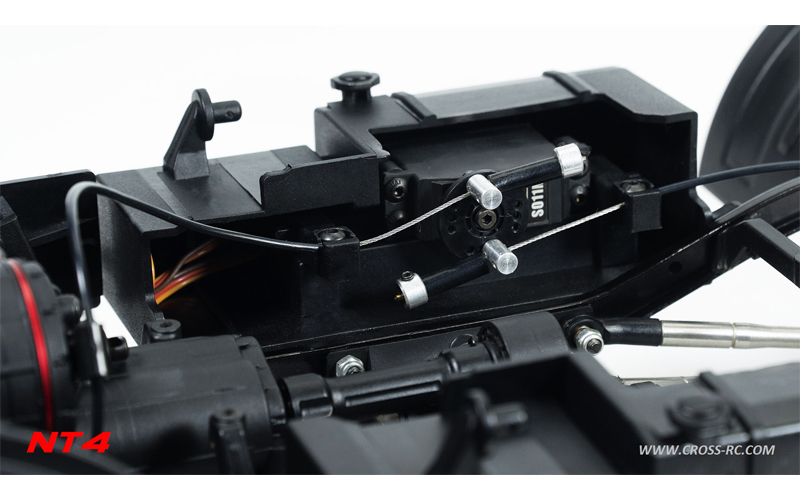

New develop low center of gravity transmission is compatible with 540, 550 and 560 levels, and also be directly installed with Hobbywing AXE crawler system.
The original equipped with 540 35T special climbing motor, Input gear compatible with 10T to 18T, final reduction ratio, the driven gear use double friction plate limited sliding structure; The driven gear use double friction plate limited sliding structure;
Powder metallurgy variable speed gear with integrated cutting technology, it’s solid and wear-resistant.
Drive system
The new truck is designed with low noise drive shaft and transmission shaft;
The 3-gear transfer case can be upgraded to Front and Rear unequal speed transfer case also for stage to enhance the climbing performance of special terrain. New develop axle with Differential lock and Portal axle. The differential with 4 + 2 gear structure cable type inlay differential lock, 1.2 deceleration, portal axle, front axle kingpin caster adjustable, Aluminum alloy CNC shock absorber; Double torque coil spring.

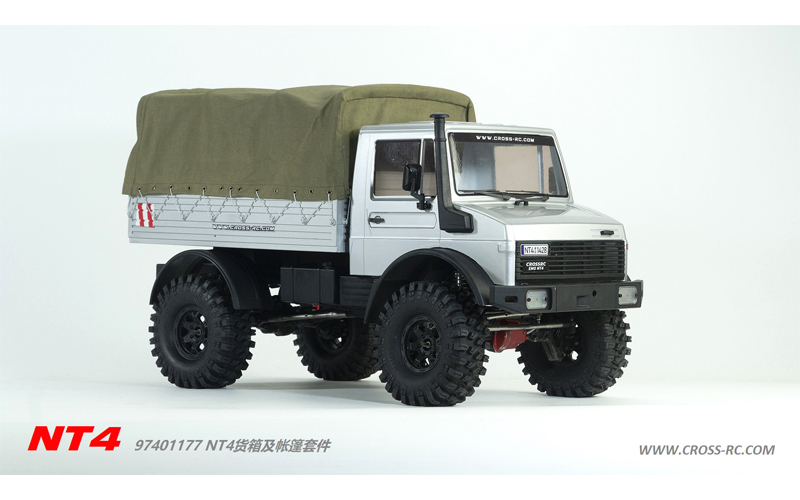

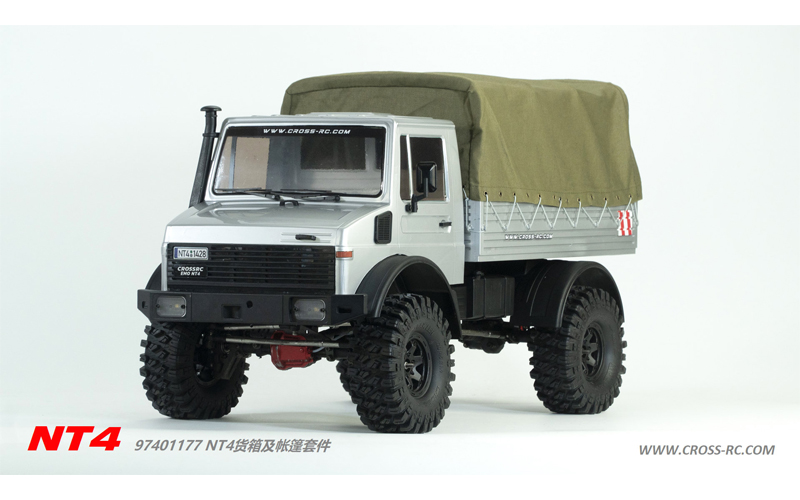

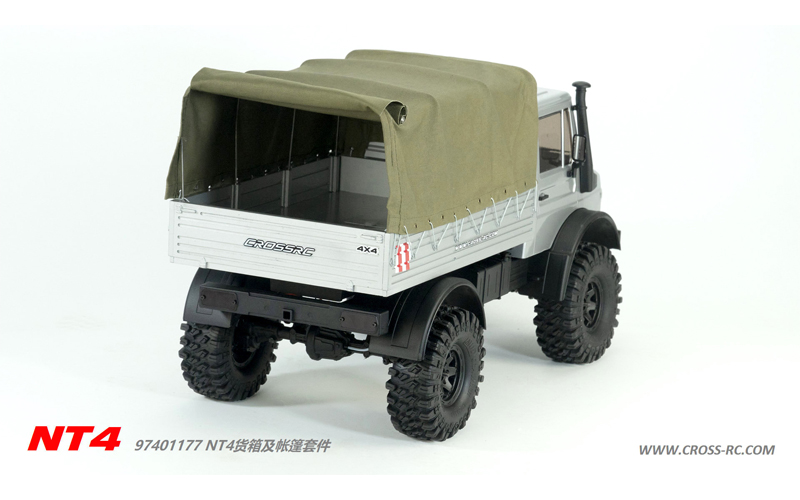

Some images shown with optional parts.
AA Batteries required for transmitter.
