DESCRIPTION

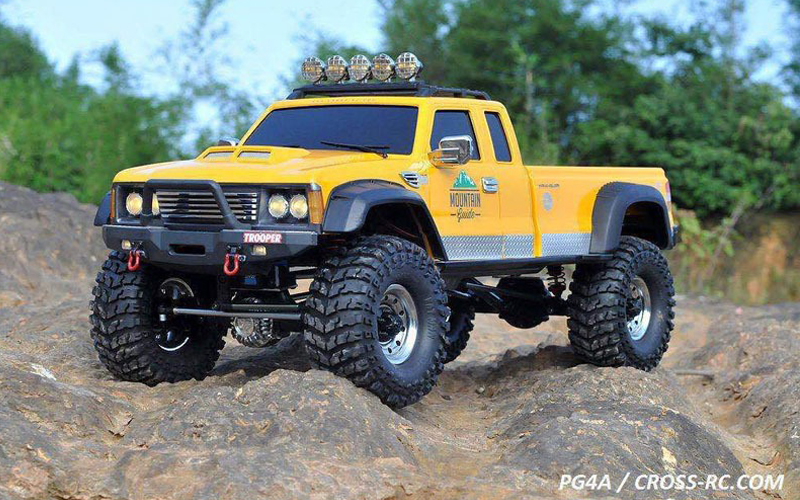

PG4A

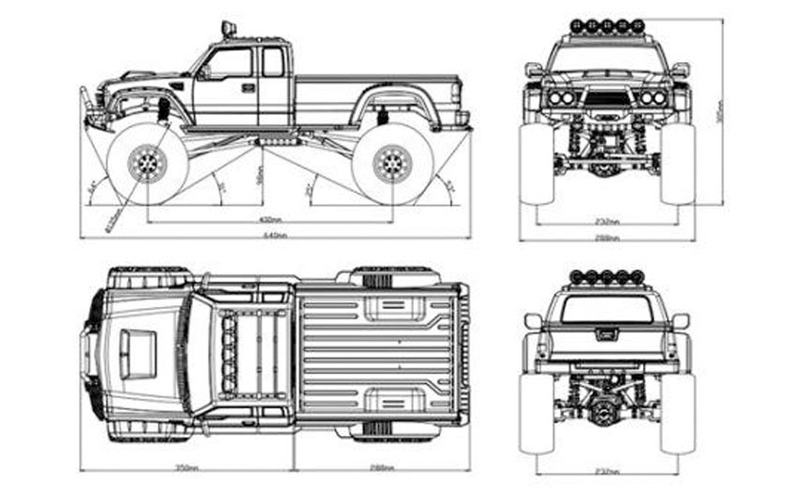

Length: 640mm, width: 288mm
Adjustable threaded shock absorbers – front features dual spring configuration
Three link suspension front features internal threaded aluminum links
Front and rear dual spring shocks
Pre-assembled 2 speed alloy transmission case (1 : 7.69 / 1 : 3.34) with 27T brushed motor
Equipment box for electronics and speaker (available separately)
Chrome parts include: mirrors, light buckets and diff covers.

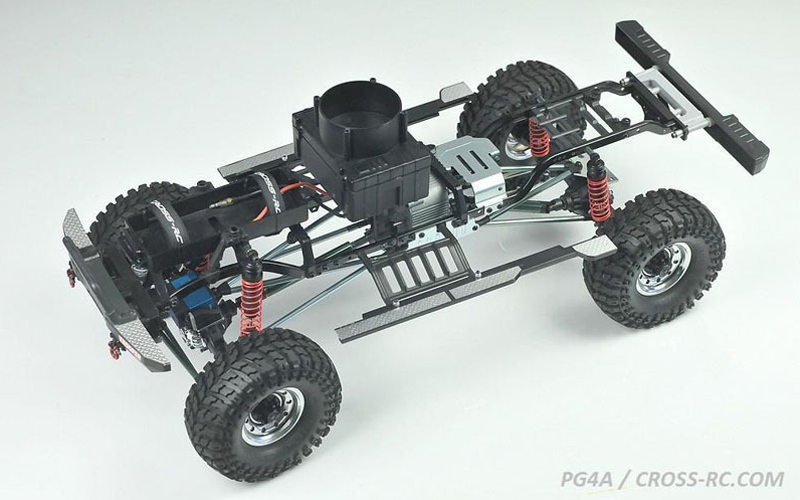

Frame features C-type steel railings with moulded frame cross members
2.2″ chrome steel beadlock wheels (12mm hex) with 2.2 Fatman tires 136mm dia with dual stage foams
LED light system features 4 head lamp, 4 indicators, 2 front fog lamps, 2 driving/stop lamps, and 2 reverse
lamps roof spotlights lights and grill spotlights- usable with most modern radio gear
Front/rear heavy duty axles with black anodized alloy C hubs and knuckles included in the kit
third proportional or 3 way switch channel to operate start stop engine and sound horn.
minimum 2 channel operation for steering and throttle. 3rd channle for gear shift
TRUCK KITS REQUIRE (not included):
Radio Gear with receiver and servos (2 servos required), 4-channels recommended
Electronic Speed Controller
Battery: 6-cell flat or equivalent
Charger: suitable for above battery
Tools and paints to complete r/c model
